Simulation overview

This guide is for implementers modeling targeting scenarios in OpenSPP. Simulations use CEL (Common Expression Language) — a formula language similar to building rules in Excel — to define who gets targeted. See CEL expressions for a full guide on writing these formulas.

Mental model

Simulation in OpenSPP has three layers:

Layer	What it does	Example
Template	Pre-built targeting pattern with CEL expression	"Target households with elderly members"
Scenario	Specific instance with parameters	"Elderly households, $100/month, Region 4"
Comparison	Side-by-side analysis of scenarios	"Age-based vs. poverty-based targeting"

Think of it like a budget calculator: templates are the formulas, scenarios are specific calculations with your numbers, and comparisons show you which option gives the best result.

Key concepts

Scenario templates

Templates are pre-built targeting patterns:

Field	What it means
Name	Template label
Category	Age-Based, Geographic, Vulnerability, Economic, or Categorical
Targeting Formula	Rule that defines who qualifies (written in CEL — see CEL expressions)
Default Amount	Default benefit per beneficiary
Target Population	Expression for ideal population (for accuracy metrics)

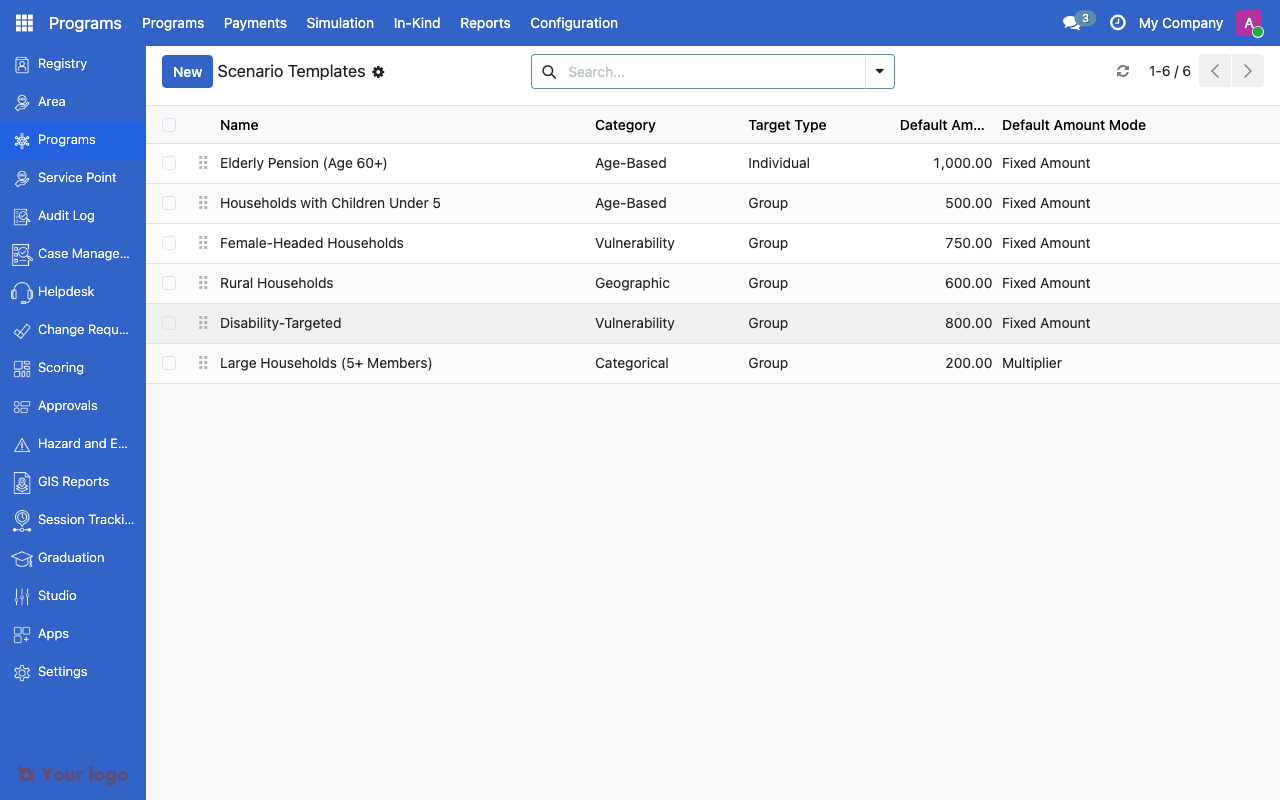

Simulation scenario templates list showing categories and targeting formulas.

Pre-built template categories:

Category	Example Templates
Age-Based	Elderly (60+), Children under 5, Working age adults
Geographic	Rural households, Urban poor, Specific provinces
Vulnerability	Female-headed households, Disability, Large households
Economic	Below poverty line, Informal sector, Unemployed
Categorical	Farmers, Fishers, Indigenous communities

Simulation scenarios

A scenario is an instance of a template with specific parameters:

Field	What it means
Template	Base targeting pattern
Benefit Amount	Amount per qualifying beneficiary
Budget Limit	Total available budget
Area Scope	Geographic restriction

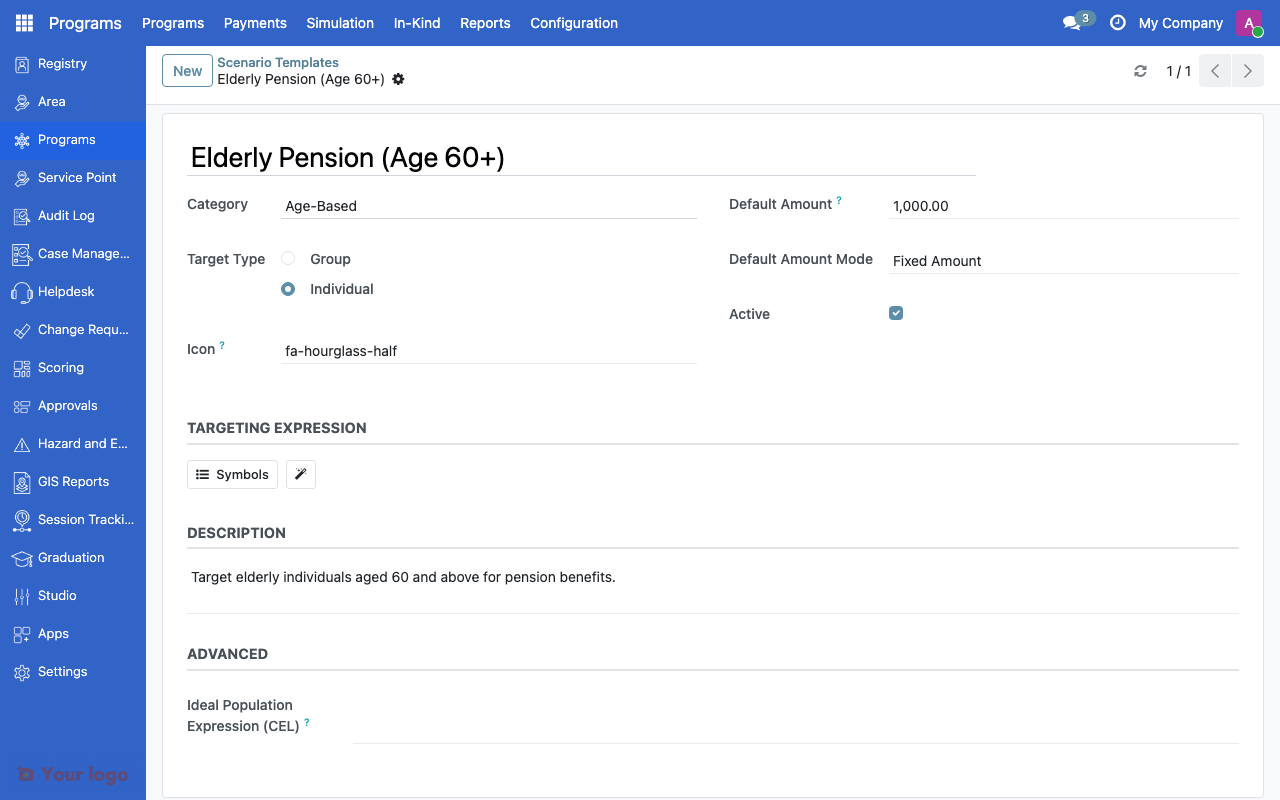

Scenario template form showing targeting formula and default parameters.

Simulation runs

When you run a scenario:

1. The targeting formula evaluates against the registry

2. Qualifying registrants are identified

3. Total cost is calculated (count x amount)

4. Metrics are computed (coverage, cost, accuracy)

Simulation comparison

Compare scenarios side by side:

Metric	What it measures
Coverage	What percentage of the target population is reached
Cost	Total program cost
Accuracy	How well targeting matches the ideal population
Inclusion error	Non-eligible beneficiaries included
Exclusion error	Eligible beneficiaries missed

Fairness metrics

The system evaluates targeting fairness across dimensions:

Metric	What it measures
Gender equity	Balance between male/female-headed households
Geographic equity	Distribution across areas
Age equity	Distribution across age groups

Navigation

Menu	Purpose
Simulation > Scenario Templates	Manage targeting templates
Simulation > Scenarios	Create and run simulations
Simulation > Comparisons	Compare scenarios side by side

Common use cases

Use case 1: Policy comparison

Goal: Compare age-based vs. poverty-based targeting for a new program.

Setup:

1. Create Scenario A from the "Elderly 60+" template with $100/month

2. Create Scenario B from the "Below Poverty Line" template with $100/month

3. Run both scenarios

4. Create a comparison to see coverage, cost, and overlap

Use case 2: Budget impact analysis

Goal: Understand the cost of different benefit levels.

Setup:

1. Create the same scenario with amounts $50, $100, and $150

2. Run all three

3. Compare to see how benefit level affects coverage vs. budget

Are You Stuck?

CEL expression returns no results?

Check the formula syntax in the CEL expressions guide. Test the formula in the expression editor first.

Comparison metrics look wrong?

Ensure scenarios use comparable populations. Comparing a geographic scenario with an age-based scenario may show high exclusion errors because they target fundamentally different groups.

Can I modify pre-built templates?

Yes. Yes. Edit the template's targeting formula, category, or default values to match your context.

How do I share simulation results?

Export comparison data from the comparison view. Results include all metrics in a downloadable format.

Next steps

• CEL expressions - CEL expression syntax for targeting

• Eligibility rules - Apply simulation results to program eligibility
