Geographic targeting#

This guide is for implementers configuring area-based eligibility to target registrants in specific administrative areas.

What is geographic targeting?#

Geographic targeting restricts program eligibility to registrants in specific administrative areas (regions, districts, villages, etc.). It's often combined with demographic criteria.

Example use cases:

Scenario

Geographic targeting

Regional pilot program

Target 3 pilot districts

Disaster response

Target affected areas only

Urban poverty program

Target urban municipalities

Phased rollout

Start with accessible areas

How it works#

The Eligibility Manager has a Target Areas section where you select administrative areas:

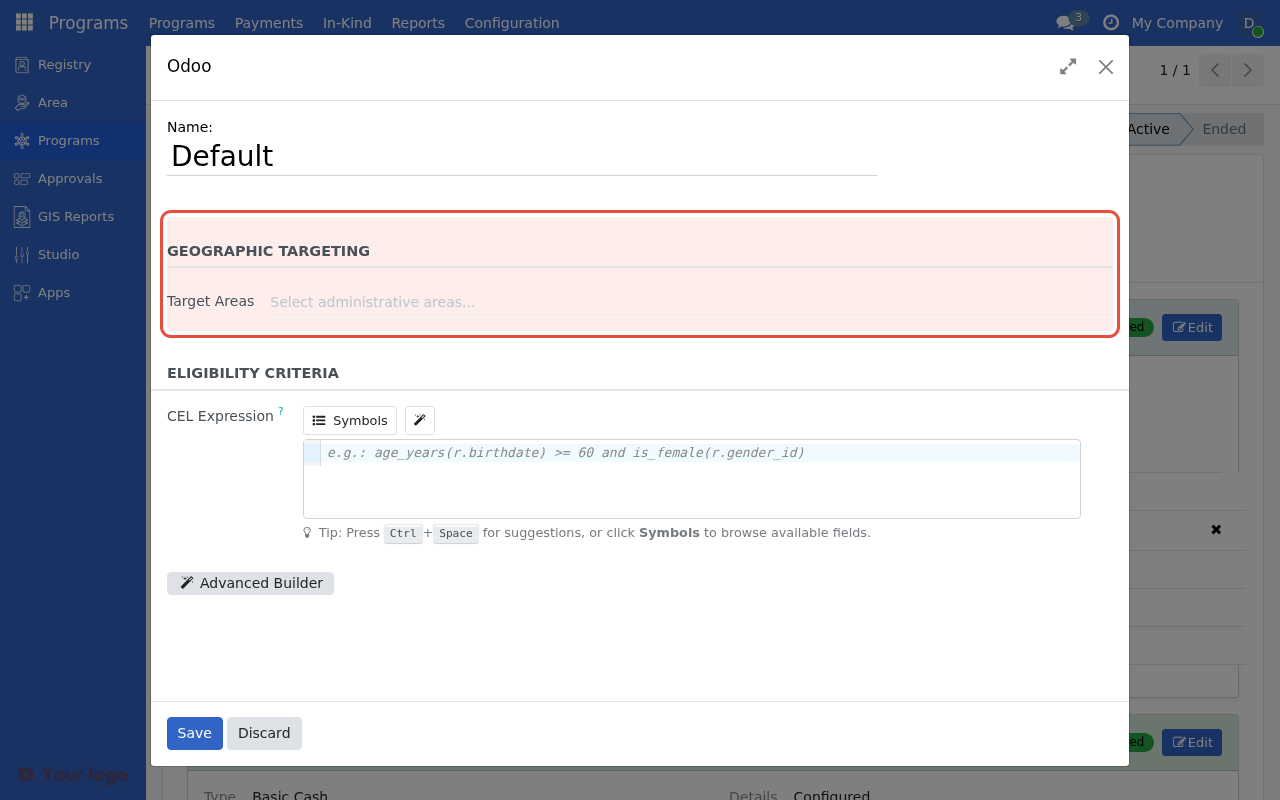

Target Areas section in eligibility manager

The Target Areas section in the eligibility manager settings.#

When geographic targeting is configured:

  1. Registrants must be in one of the selected areas AND

  2. Registrants must match the CEL expression (if defined)

        graph TD
    R[Registrant] --> A{In target area?}
    A --> |Yes| C{Matches CEL?}
    A --> |No| N[Not Eligible]
    C --> |Yes| E[Eligible]
    C --> |No| N

Configuring target areas#

Step 1: Open the eligibility manager#

  1. Go to Programs → Programs

  2. Open your program

  3. Click the Configuration tab

  4. Find the Eligibility Manager section

  5. Click the gear icon to open manager settings

Step 2: Select target areas#

In the Target Areas field:

  1. Click the field to open the area selector

  2. Search or browse for areas

  3. Select one or more areas

  4. Areas can be at any level (region, district, village)

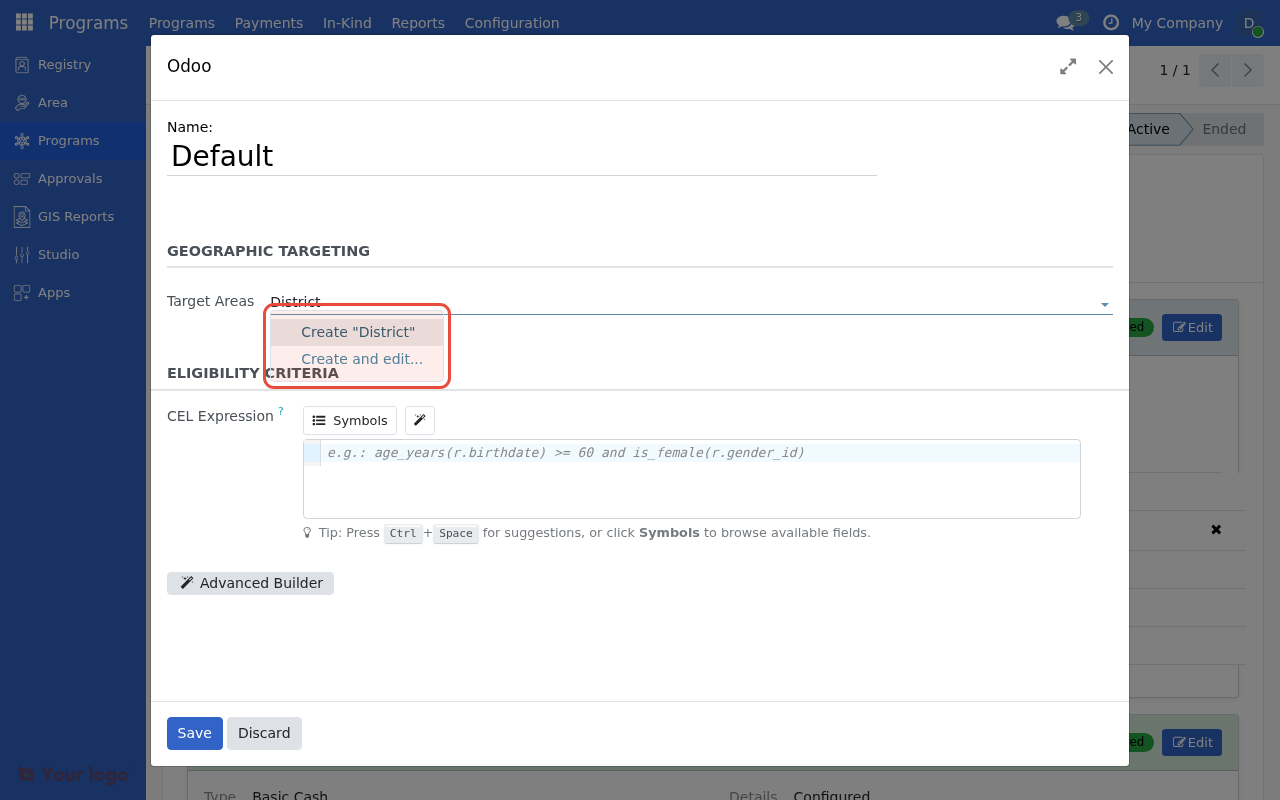

Area selection dropdown with search

Click the Target Areas field to search and select administrative areas.#

Step 3: Save configuration#

Click Save to apply the geographic targeting.

Area hierarchy#

Administrative areas in OpenSPP form a hierarchy:

Country
└── Region
    └── District
        └── Sub-district
            └── Village

When you select an area:

Selection

Who is included

Region only

Registrants in that region (all districts)

District only

Registrants in that district only

Multiple areas

Registrants in any selected area

Note

Child areas are not automatically included. If you select "Region A", only registrants with area_id set to "Region A" match—not those in districts within Region A. Select all relevant areas explicitly.

Combining with CEL expressions#

Geographic targeting works alongside CEL expressions:

Configuration

Result

Areas only

All registrants in selected areas

CEL only

All registrants matching the expression

Areas + CEL

Registrants in areas AND matching CEL

Example: Elderly in pilot districts#

To target senior citizens (65+) in three pilot districts:

  1. CEL Expression: age_years(r.birthdate) >= 65

  2. Target Areas: Select the three pilot districts

Both conditions must be true for eligibility.

Using area in CEL expressions#

You can also reference area in CEL expressions:

# Registrants in a specific area (by area code)
r.area_id.code == "DISTRICT_01"

# Registrants in urban areas (if area type is tracked)
r.area_id.area_type == "urban"

However, using the Target Areas field is preferred for:

  • Easier configuration (point-and-click)

  • Clear audit trail

  • Simpler expression maintenance

Best practices#

Do: Be explicit about area levels#

Select areas at the appropriate level. If you want all districts in a region, select each district individually.

Do: Document your targeting rationale#

Record why specific areas were selected (e.g., "Pilot phase 1 districts" or "Flood-affected areas 2024").

Don't: Mix area methods#

Choose one approach:

  • Use Target Areas field for straightforward area targeting

  • Use CEL expressions only if you need dynamic area logic

Mixing both can create confusion.

Don't: Forget to update areas#

When program scope changes (e.g., expansion to new areas), update the target areas configuration.

Viewing targeted areas#

To see which areas are configured:

  1. Open the program's Configuration tab

  2. Find the Eligibility Manager section

  3. Look for the Target Areas field

Target Areas field in eligibility manager settings

The Target Areas field where selected administrative areas appear.#

Are you stuck?#

Registrants in the area aren't matching?

  • Verify the registrant's area_id is set correctly

  • Check you selected the correct area level (district vs region)

  • Ensure the area names match exactly

Need to target by area type (urban/rural)?

  • Use a CEL expression: r.area_id.area_type == "urban"

  • Or create separate programs for urban vs rural

Want to include all sub-areas?

  • Select each sub-area individually in the Target Areas field

  • Or use CEL: r.area_id.parent_id.code == "REGION_01"
