Field mappings

Field mappings define how data from a change request detail model is applied to the target registrant record. This guide covers all mapping options available in OpenSPP.

Apply strategies

OpenSPP supports three apply strategies:

Strategy	Description	Use Case
Field Mapping	Copies fields from detail to registrant using configured mappings	Most common - simple field updates
Custom Method	Executes Python code for complex logic	Adding members, splitting households
Manual Application	Requires manual intervention to apply	Complex migrations, bulk corrections

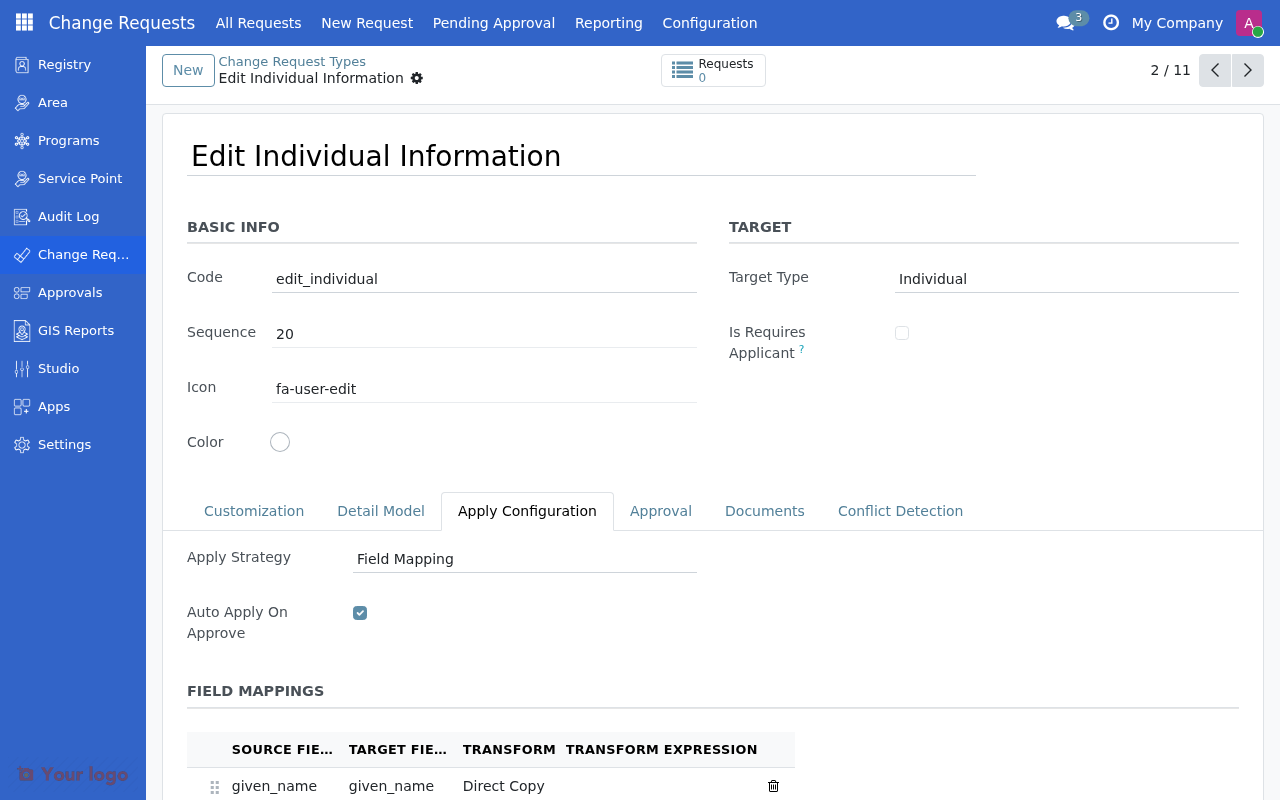

Basic mapping

When source and target field names match exactly, use Direct Copy:

Source Field	Target Field	Transform
phone	phone	Direct Copy
email	email	Direct Copy
given_name	given_name	Direct Copy
family_name	family_name	Direct Copy

Relational field mapping

For Many2one fields, map the ID field:

Source Field	Target Field	Transform
gender_id	gender	Direct Copy
area_id	area_id	Direct Copy
country_id	country_id	Direct Copy

Note

The system automatically handles .id extraction for relational fields. You don't need to explicitly reference the ID.

Expression-based mapping

For complex transformations, use expressions. Set the Transform to Expression and provide a Python expression.

Concatenating fields

Source Field	Target Field	Transform	Expression
given_name	name	Expression	(value or '') + ' ' + (detail.family_name or '')

Calculating values

Source Field	Target Field	Transform	Expression
birthdate	age_years	Expression	(datetime.now().date() - value).days // 365 if value else 0

Available variables in expressions

Variable	Description
value	The source field value
detail	The entire detail record
registrant	The target registrant record
datetime	Python datetime module
date	Python date module

Warning

Expression-based mappings execute Python code. Only administrators should configure expressions due to arbitrary code execution risk.

Conditional mapping

Only apply a mapping when a condition is met:

Source Field	Target Field	Transform	Expression
is_primary	phone	Expression	detail.new_phone if value else registrant.phone

This example only updates the phone if is_primary is true; otherwise, it keeps the existing value.

More conditional examples

Update only if not empty:

value if value else registrant.email

Apply different logic based on type:

detail.new_phone if detail.phone_type == 'mobile' else registrant.phone

Format before applying:

value.strip().upper() if value else ''

Custom apply strategies

For complex operations that can't be expressed with field mappings, use a Custom Method:

1. Set Apply Strategy to Custom Method

2. Set Apply Model to the model containing the apply logic

3. Set Apply Method to the method name (usually apply)

Available custom strategies

Model	Purpose
spp.cr.apply.add_member	Add new member to group
spp.cr.apply.remove_member	Remove member from group
spp.cr.apply.change_hoh	Change head of household
spp.cr.apply.transfer_member	Transfer member between groups
spp.cr.apply.exit_registrant	Deactivate registrant
spp.cr.apply.create_group	Create new group/household
spp.cr.apply.split_household	Split household into two
spp.cr.apply.merge_registrants	Merge duplicate records

Manual application

For changes that need human review before application:

1. Set Apply Strategy to Manual

2. Set Auto Apply On Approve to No

3. After approval, an administrator manually applies changes

Use cases:

• Complex group restructuring

• Data migrations

• Bulk corrections requiring verification

Troubleshooting mappings

Field not updating

Problem: Approved change request doesn't update the registrant field.

Checks:

• Is the source field name spelled correctly?

• Does the target field exist on res.partner?

• Is Auto Apply On Approve enabled?

• Check Odoo logs for errors

Expression errors

Problem: Expression mapping throws an error.

Checks:

• Test the expression in Odoo shell first

• Ensure all variables are defined

• Handle None/False values explicitly

• Check for syntax errors

Relational field issues

Problem: Many2one field not being set.

Checks:

• Map the field itself, not .id

• Ensure the related record exists

• Check access rights to the related model

See also

• Creating change request types - Basic configuration steps

• Common configuration patterns - Common configuration patterns

• Troubleshooting - More troubleshooting tips
