CEL quick start

This guide is for implementers who want to start writing CEL expressions in OpenSPP.

You should be comfortable with "logic builders" (like CommCare or Kobo configuration) but you don't need Python experience.

What you'll learn

By the end of this guide, you will:

• Understand the three core concepts (symbols, variables, expressions)

• Create your first variable

• Create your first expression

• Know how to discover what data is available

Prerequisites

• Access to OpenSPP with Studio Editor or Studio Manager permissions

• The CEL modules installed (standard in OpenSPP V2)

The three core concepts

1. Symbols

Symbols are the data available in a given context. The most common symbols:

Symbol	What it represents	Available in
r	Current record (registrant, ticket, etc.)	Most contexts
members	Household members	Group/household context
enrollments	Program memberships	Registry context
entitlements	Entitlement records	Registry context
events	Event data records	When event integration installed

Note

The symbol r represents the current record. Inside aggregate functions (like counting members), use m to reference each member.

2. Variables

Variables are named data points you define once and reuse everywhere:

Source type	Example	Use case
Model Field	has_disability	Maps directly to a registry field
Constant	poverty_line = 10000	Threshold values (can be program-specific)
Computed	age = age_years(r.birthdate)	Calculated from CEL expression
Aggregate	children_under_5_count	Computed over household members
External	external_score	From external data provider
Vocabulary	disability_type	From vocabulary concept
Scoring	vulnerability_score	From scoring model results

3. Expressions

Expressions are reusable rules that combine variables and symbols:

children_under_5_count >= 1 and household_income < poverty_line

Expressions have different types based on their purpose:

Expression type	Output	Use case
Filter	Boolean	Select records (eligibility, search)
Formula	Number	Calculate amounts (entitlements)
Scoring	Number	Compute indicator scores
Validation	Boolean	Data validation rules

Example A: Create a variable

Goal: Create a variable that counts children under 5 in a household.

Step 1: Navigate to variables

There are two ways to access Variables:

Option A - From Dashboard:

1. Click Studio in the main menu

2. Click the Variables card on the dashboard

Option B - From Menu:

1. Click Studio in the main menu

2. Click Rules in the top menu bar

3. Click Variables

Step 2: Create a new variable

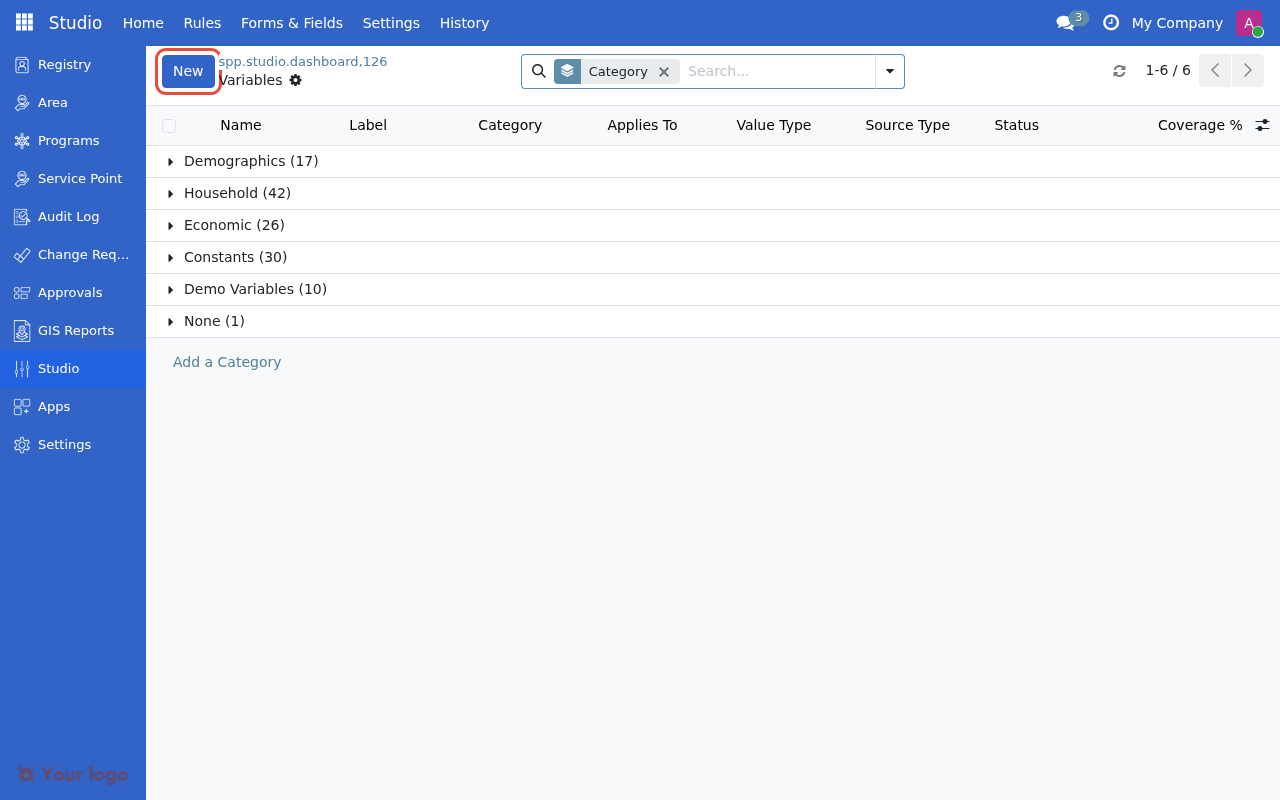

1. Click New to create a new variable

Click New to create a new variable.

Step 3: Configure the variable

Fill in the basic information:

Field	Value
Variable Name	Children Under 5 Count
CEL Accessor	children_under_5_count

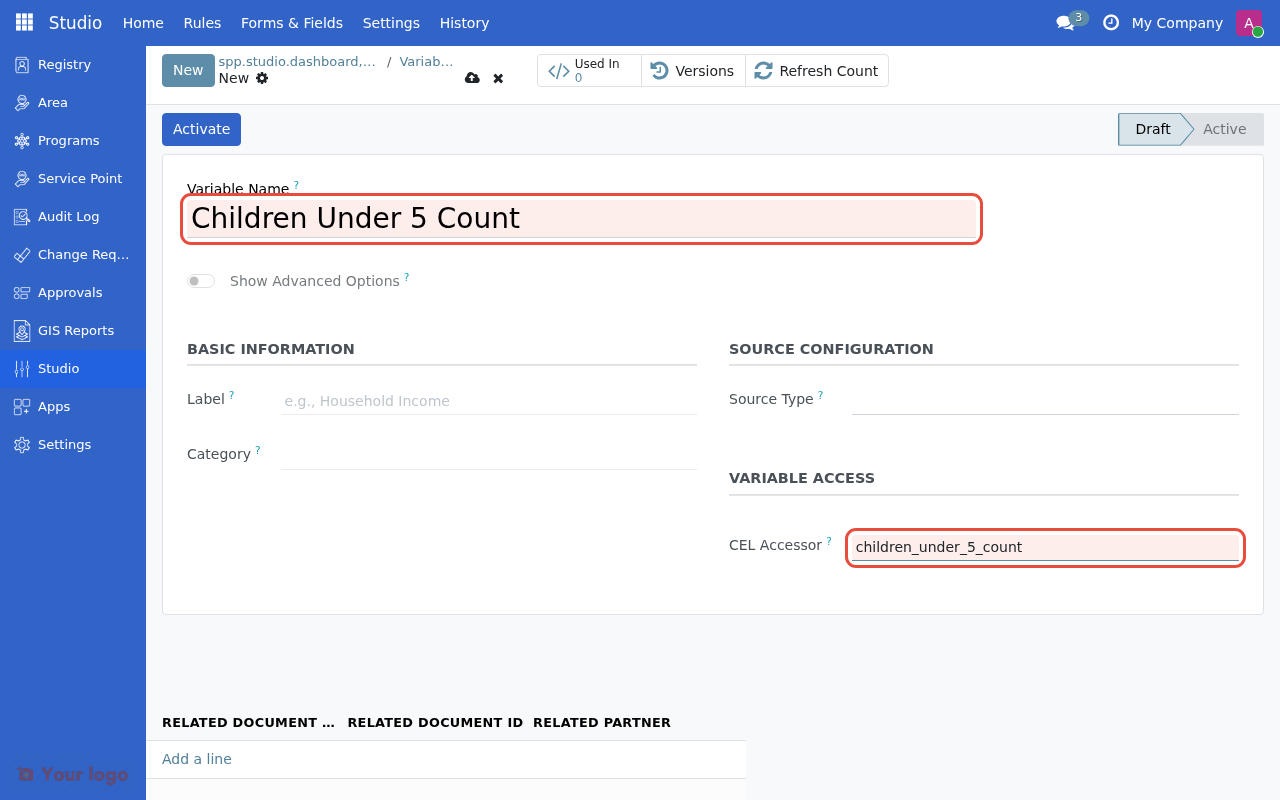

Fill in the variable name and CEL accessor.

Step 4: Configure the source

Select Member Aggregate as the Source Type, then configure:

Field	Value
Source Type	Member Aggregate
Aggregate Target	Household Members
Aggregate Type	Count
Filter (optional)	age_years(m.birthdate) < 5

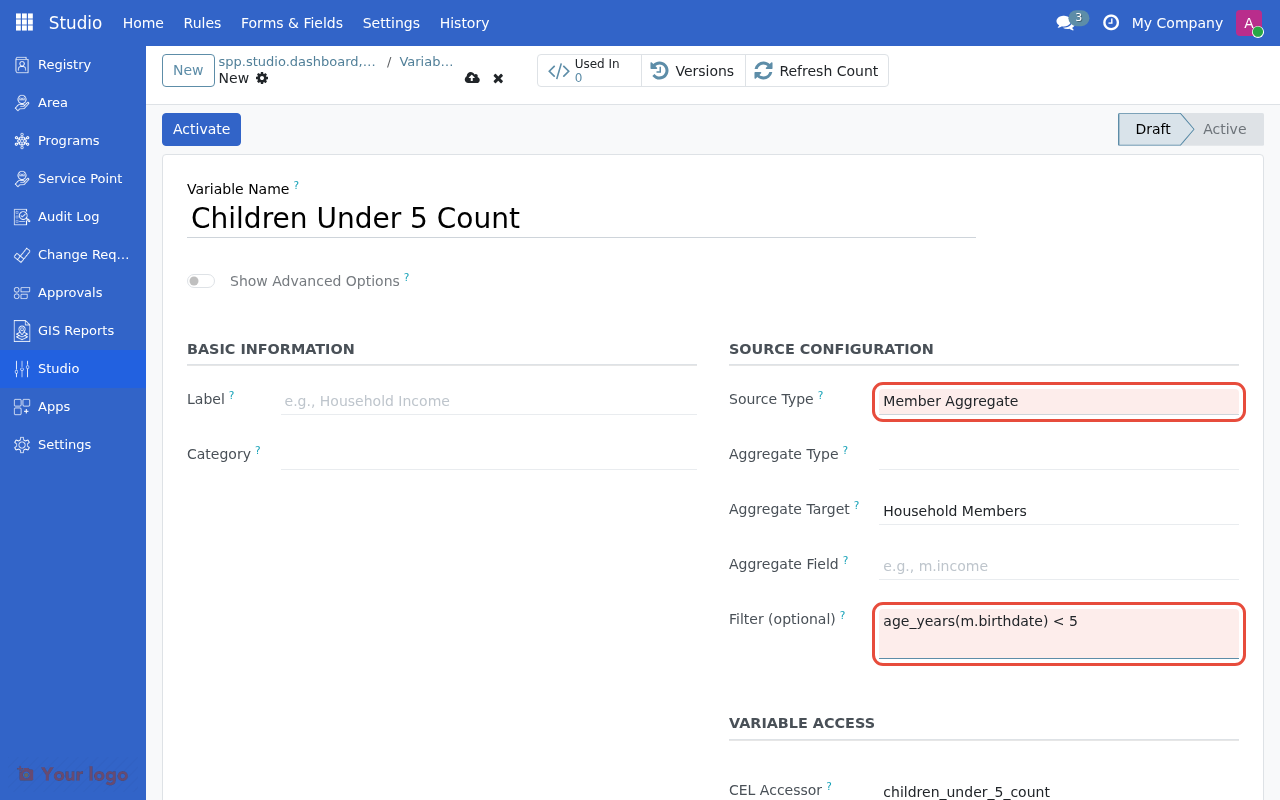

Configure the aggregate source type, target, and filter expression.

Note

In aggregate filters, use m to reference each member. The expression age_years(m.birthdate) < 5 checks each member's age.

Step 5: Save and activate

1. Click Save to create the variable in Draft state

2. Click Activate to make it available for use

Now you can use children_under_5_count in any expression that applies to groups/households.

Example B: Create an expression

Goal: Create an expression that identifies "priority households" (those with children under 5).

Step 1: Navigate to expressions

Option A - From Dashboard:

1. Click Studio in the main menu

2. Click the Expressions card on the dashboard

Option B - From Menu:

1. Click Studio in the main menu

2. Click Rules in the top menu bar

3. Click Expressions

Step 2: Create a new expression

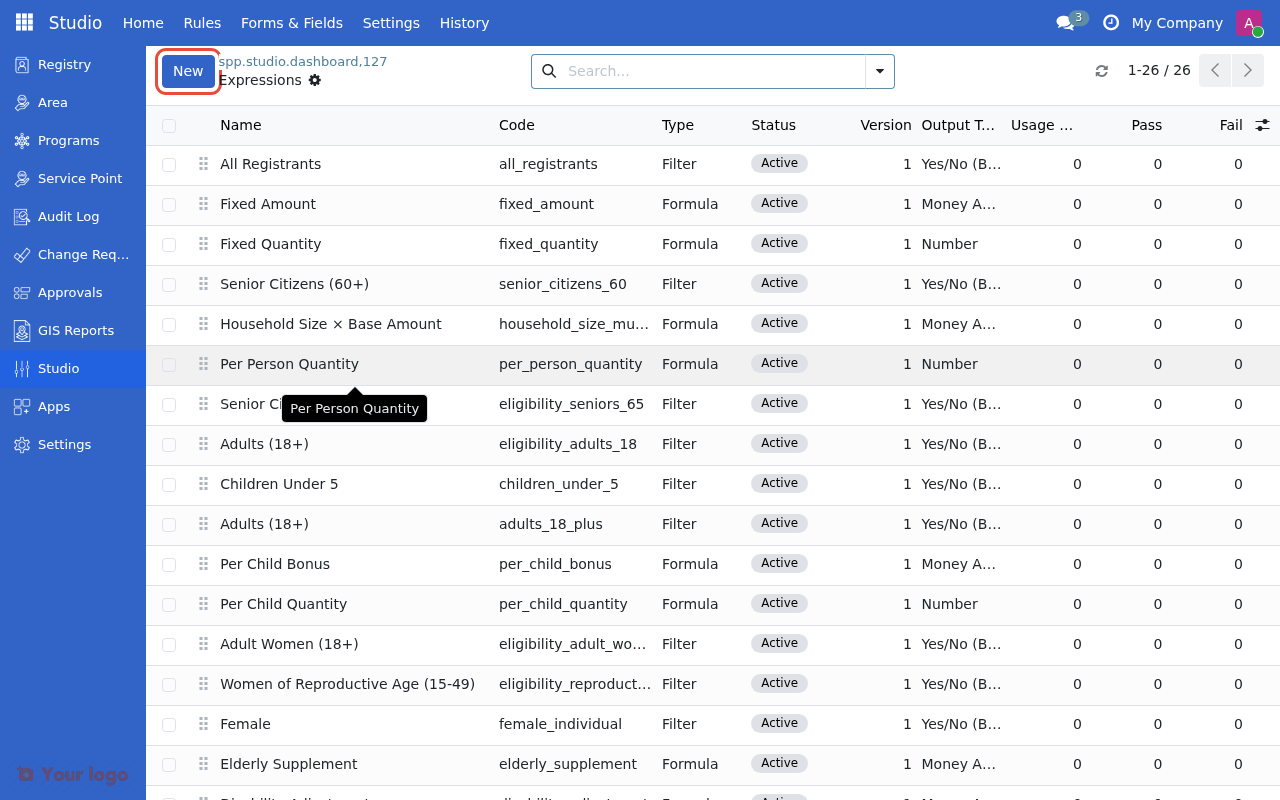

1. Click New to create a new expression

Click New to create a new expression.

Step 3: Configure the expression

Fill in the basic information:

Field	Value
Name	Priority Household
Type	Filter
Context	Group/Household
Output Type	Yes/No (Boolean)

Fill in the expression name, type, context, and output type.

Step 4: Enter the CEL expression

In the CEL editor, enter:

children_under_5_count >= 1

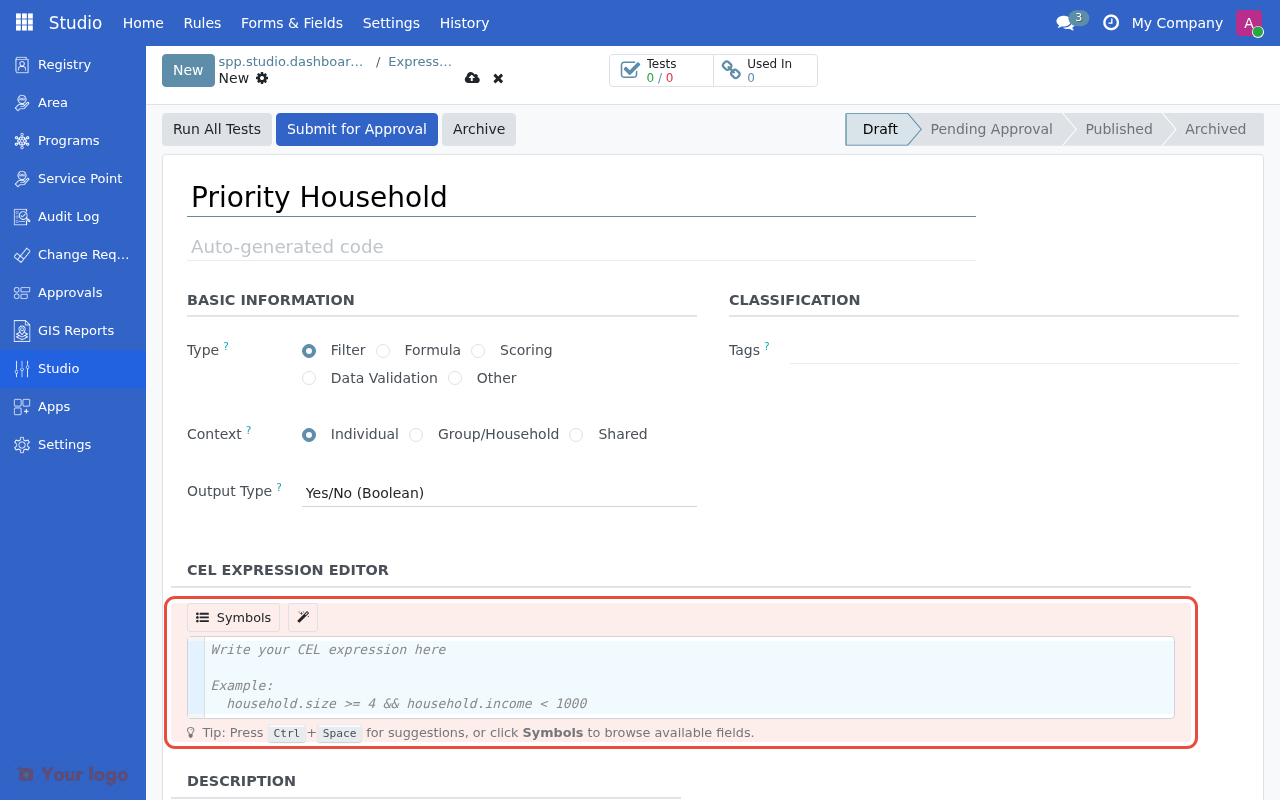

Enter the CEL expression in the editor.

The editor provides:

• Autocomplete: Type children and press Ctrl+Space to see matching variables

• Validation: Errors appear as red underlines with explanations

• Matching count: Shows how many records match your expression

Step 5: Test your expression (recommended)

1. Click the Tests tab

2. Click Add a test case to add a test case

3. Select a test household from the registry

4. Set the expected result (True or False)

5. Click Run All Tests to verify

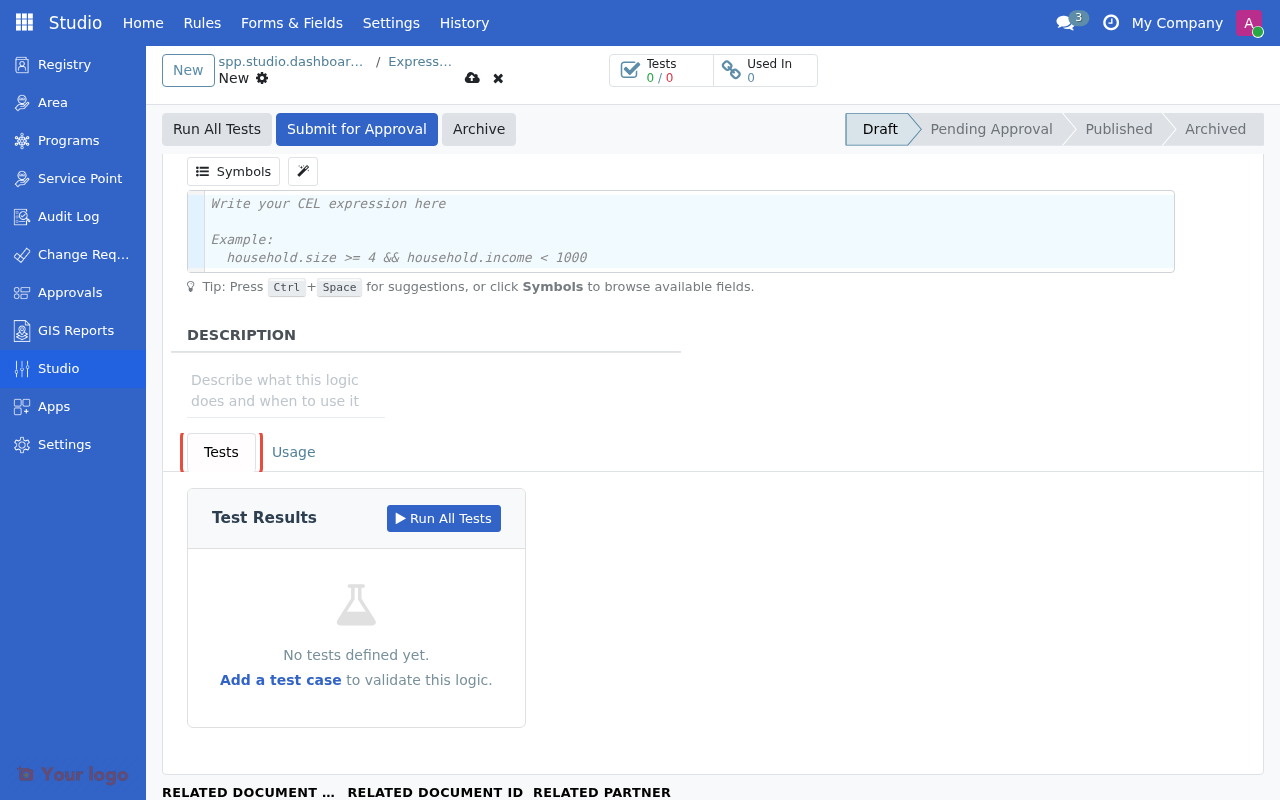

Add test cases and click Run All Tests to verify your expression.

Step 6: Save and publish

1. Click Save to create the expression in Draft state

2. Click Submit for Approval to request publication

3. Once approved, the expression will be Published and available for use

Note

Expressions follow a workflow: Draft → Pending Approval → Published → Archived. Only users with approval permissions can publish expressions.

How to know what data is available

The CEL editor provides tools to discover available data:

Autocomplete

Type in the editor and press Ctrl+Space to see suggestions:

• Type r. to see fields on the current record

• Type a variable name to see matching variables

• Type a function name to see its signature

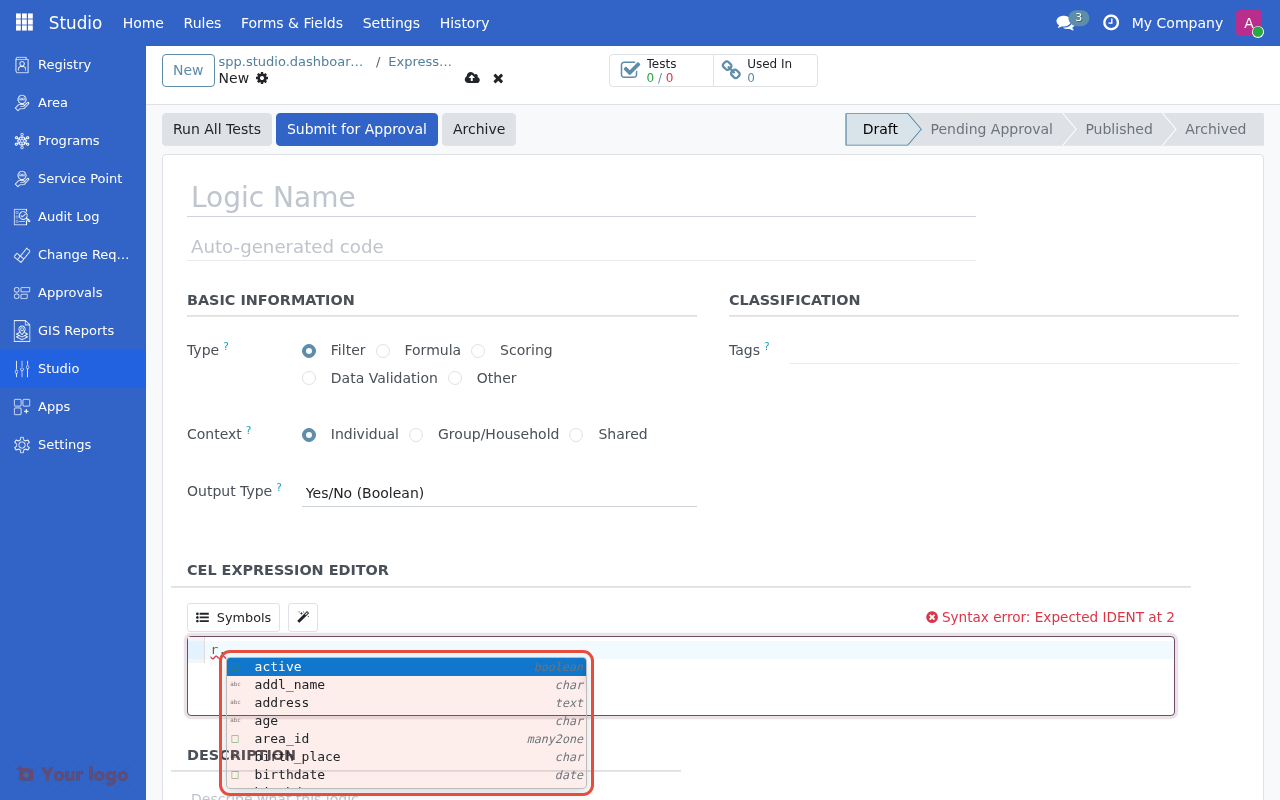

Type r. and press Ctrl+Space to see available fields.

Symbol browser

Click the Symbols button above the CEL editor to browse:

• Available symbols and their fields

• Active variables you can use

• Built-in functions with descriptions

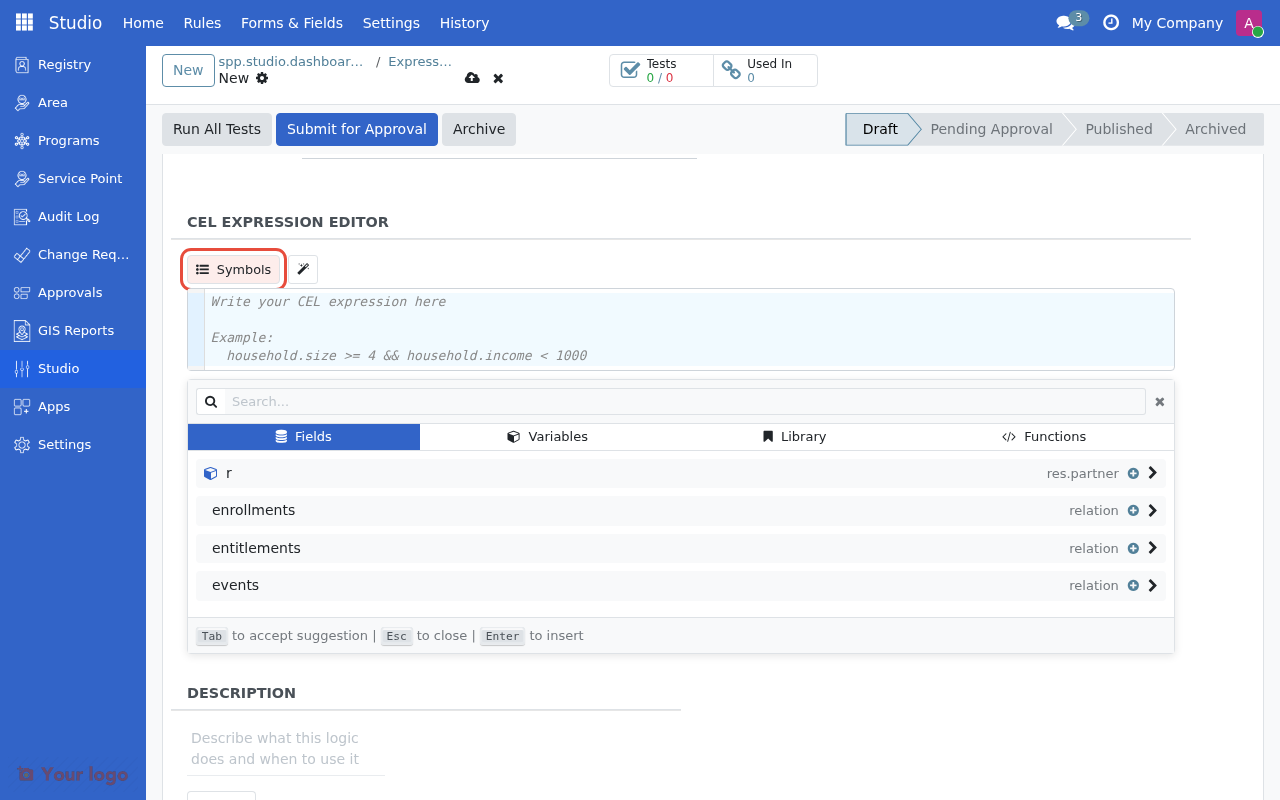

Click Symbols to browse available fields, variables, and functions.

Validation feedback

The editor shows real-time validation:

• Red underlines: Syntax errors or unknown symbols

• Hover for details: See error explanations

• Matching count: For filter expressions, shows how many records match

Common mistakes

Mistake	Problem	Fix
enrolled	Unquoted string	"enrolled"
True	Wrong case	true
AND	Wrong case	and
birthdate	Missing context	r.birthdate or m.birthdate
members.count(age < 5)	Missing member reference	members.count(age_years(m.birthdate) < 5)

Are you stuck?

Can't find the Variables or Expressions menu?

• Check that you have Studio Editor or Studio Manager permissions

• Try accessing via the Studio Dashboard cards instead

Variable not appearing in autocomplete?

• Make sure the variable is Active (variables use Draft → Active workflow)

• Check that the variable's context matches your expression context (Individual vs Group)

• Verify you're using the CEL Accessor name, not the display name

Expression validates but matches 0 records?

• Check that you're testing against the correct registry type (Individual vs Group)

• Verify test data exists with the expected field values

• Try simplifying the expression to true first, then add conditions one at a time

"Unknown symbol" error?

• Use autocomplete (Ctrl+Space) to see available symbols

• Check that referenced variables are Active

• Verify the context matches (individual vs group profiles have different symbols)

Can't activate a variable or publish an expression?

• Variables: You need Studio Manager permission to activate

• Expressions: You need approval permissions to publish (expressions go through an approval workflow)

• Check that all required fields are filled

• For aggregates, verify the filter expression is valid

Next steps

• Common patterns: CEL cookbook

• Full syntax reference: CEL syntax reference

• Debugging tips: CEL troubleshooting

• Variable system details: Variables
